BACKING SYSTEMS
Three backing systems. Choose by floor performance.
The backing system is where a commercial carpet tile earns or loses the specification. Our catalogue is available on three industry-standard backing systems so you can match environmental, acoustic and budget requirements without compromising the face.

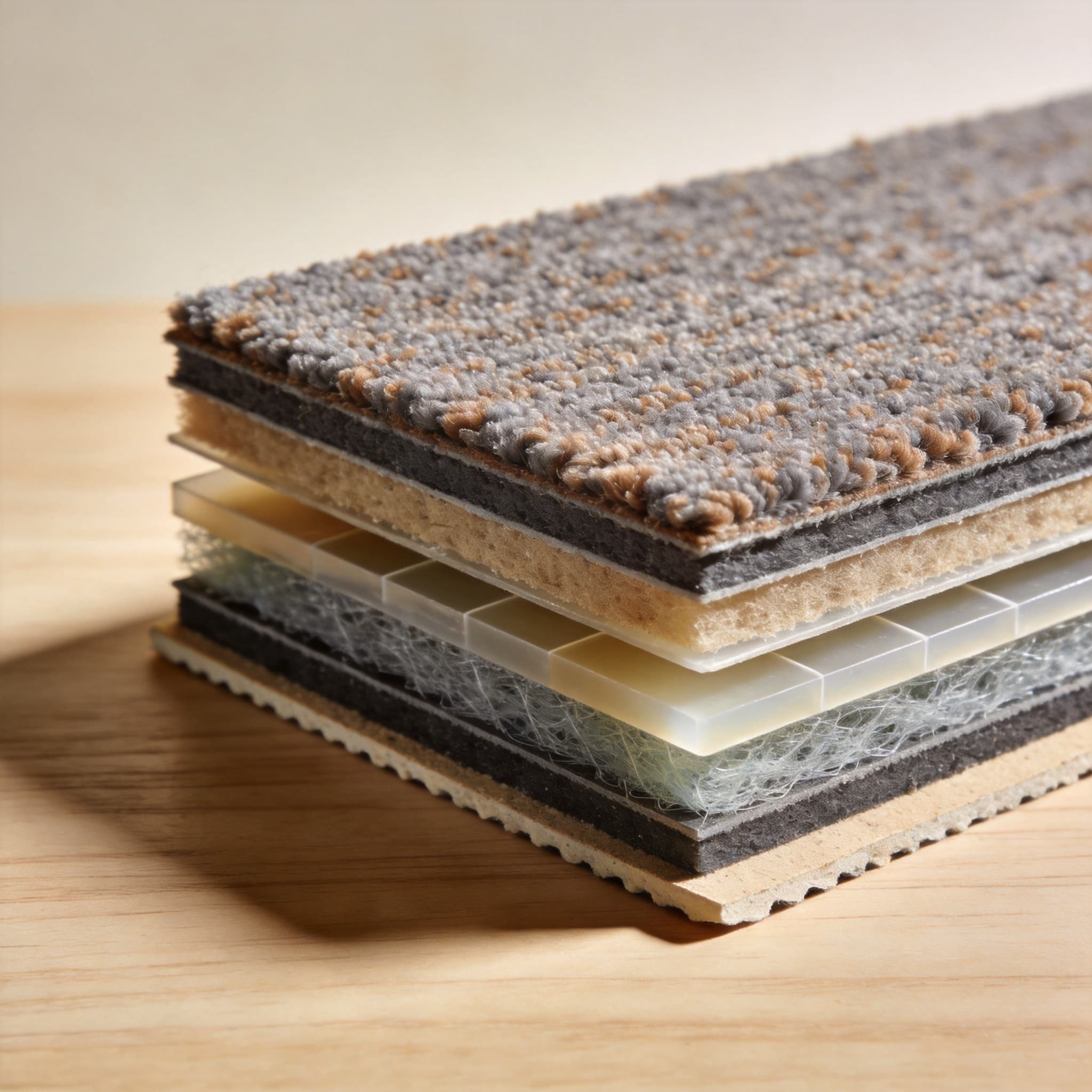

Multi-layer construction
Six to seven layers, bonded as one continuous system.
Scroll to reveal how each layer contributes to dimensional stability, acoustic performance and installed longevity.
Scroll to reveal ↓
FPE Standard
6 layers · 7 mm
01 · Injection-dye Nylon Pile~4.0 mm
02 · Primary Backing (PP)~0.4 mm
03 · Latex Precoat~0.3 mm
04 · Fiberglass Reinforcement~0.3 mm
05 · FPE High-polymer Compound~1.4 mm
06 · Non-woven Bottom~0.5 mm
PU Cushioned
7 layers · 9 mm
01 · Injection-dye Nylon Pile~4.0 mm
02 · Primary Backing (PP)~0.4 mm
03 · Latex Precoat~0.3 mm
04 · Fiberglass Reinforcement~0.3 mm
05 · FPE High-polymer Compound~1.4 mm
06 · PU Cushion~2.0 mm
07 · Non-woven Bottom~0.5 mm
System
Layers
Thickness
Core strength
FPE Standard
6-layer construction
5 mm – 6 mm
100% eco, PVC-free, recyclable. High-performance polyethylene interlayer for excellent moisture stability.
PU Cushioned
7-layer construction
9 mm
FPE base plus dense polyurethane cushion. Significant acoustic dampening and premium ergonomic underfoot comfort.
EVA Economy
Multi-layer
Economical
Lightweight, cost-effective — suited to cost-sensitive high-volume projects.
FPE Standard
- Layers
- 6-layer construction
- Thickness
- 5 mm – 6 mm
- Highlights
- 100% eco, PVC-free, recyclable. High-performance polyethylene interlayer for excellent moisture stability.
PU Cushioned
- Layers
- 7-layer construction
- Thickness
- 9 mm
- Highlights
- FPE base plus dense polyurethane cushion. Significant acoustic dampening and premium ergonomic underfoot comfort.
EVA Economy
- Layers
- Multi-layer
- Thickness
- Economical
- Highlights
- Lightweight, cost-effective — suited to cost-sensitive high-volume projects.
